# 紅外示例-InfraredViewer

功能描述：演示獲取紅外相機圖像，顯示紅外圖像，并通過ESC_KEY鍵退出程序

>本示例基于C High Level API進行演示

創(chuàng )建pipeline，進行流配置

// Create a pipeline to open the Infrared stream after connecting the device
pipeline = ob_create_pipeline(&error);
check_error(error);

// Create config to configure the resolution, frame rate, and format of the Infrared stream
ob_config *config = ob_create_config(&error);
check_error(error);

// Configure the infrared stream
// Please adjust the sensor according to the actual product, some device types only have OB_SENSOR_IR_LEFT and OB_SENSOR_IR_RIGHT.
ob_stream_profile      *ir_profile = NULL;
ob_stream_profile_list *profiles   = ob_pipeline_get_stream_profile_list(pipeline, OB_SENSOR_IR, &error);
check_error(error);

if(profiles == nullptr) {
    printf(
        "The obtained IR resolution list is NULL. For binocular structured light devices, try using the doubleIr example to turn on the ir data stream. ");
    return 0;
}

// Find the corresponding profile according to the specified format, first look for the y16 format
ir_profile = ob_stream_profile_list_get_video_stream_profile(profiles, 640, OB_HEIGHT_ANY, OB_FORMAT_Y16, 30, &error);
// If the specified format is not found, search for the default profile to open the stream
if(error) {
    ir_profile = ob_stream_profile_list_get_profile(profiles, OB_PROFILE_DEFAULT, &error);
    ob_delete_error(error);
    error = nullptr;
}

// enable stream
ob_config_enable_stream(config, ir_profile, &error);
check_error(error)

通過config開啟pipeline

// Start the pipeline with config
ob_pipeline_start_with_config(pipeline, config, &error);
check_error(error)

釋放相關資源

// stop the pipeline
ob_pipeline_stop(pipeline, &error);
check_error(error);

// destroy the window
delete win;

// destroy profile
ob_delete_stream_profile(ir_profile, &error);
check_error(error);

// destroy profile list
ob_delete_stream_profile_list(profiles, &error);
check_error(error);

// destroy the pipeline
ob_delete_pipeline(pipeline, &error);
check_error(error);

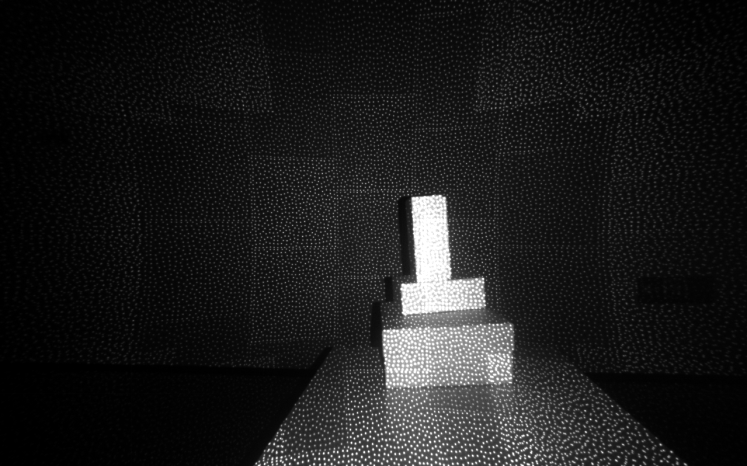

預期輸出：
